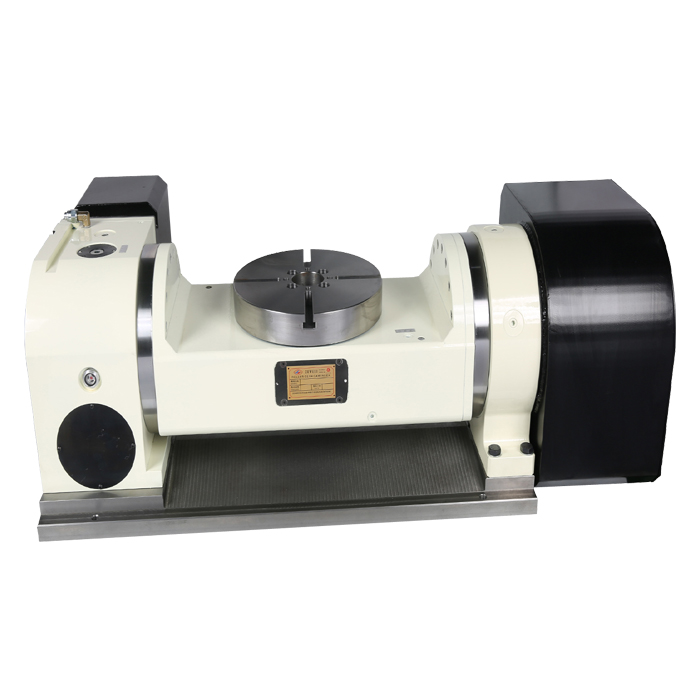

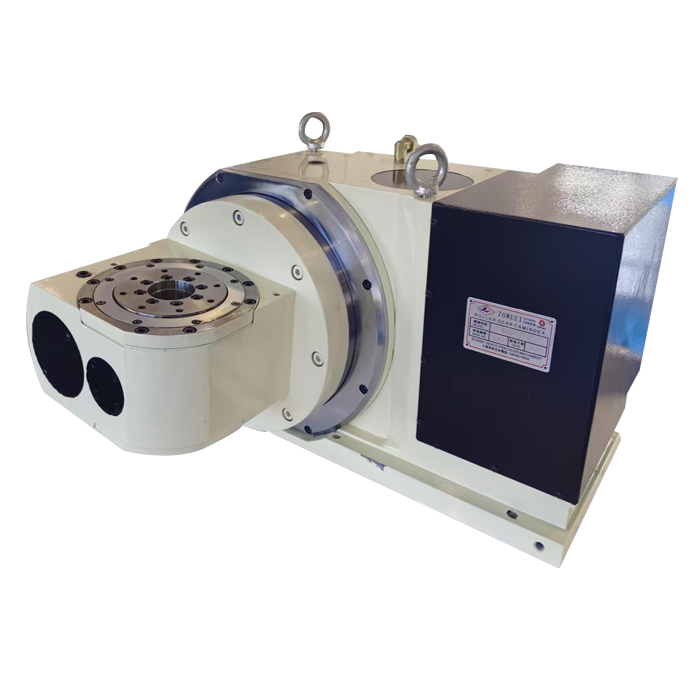

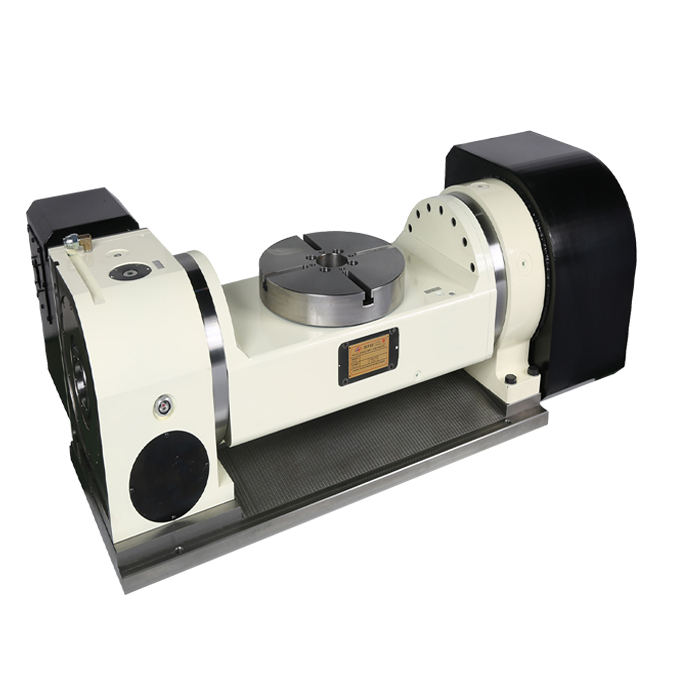

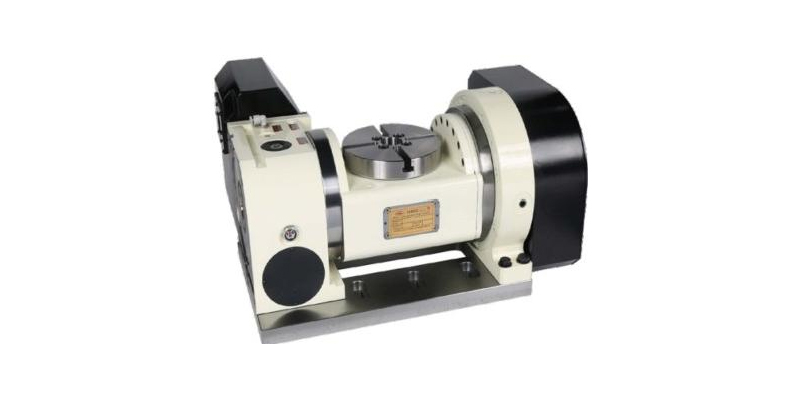

CNC Rotary Tables-5th Axis

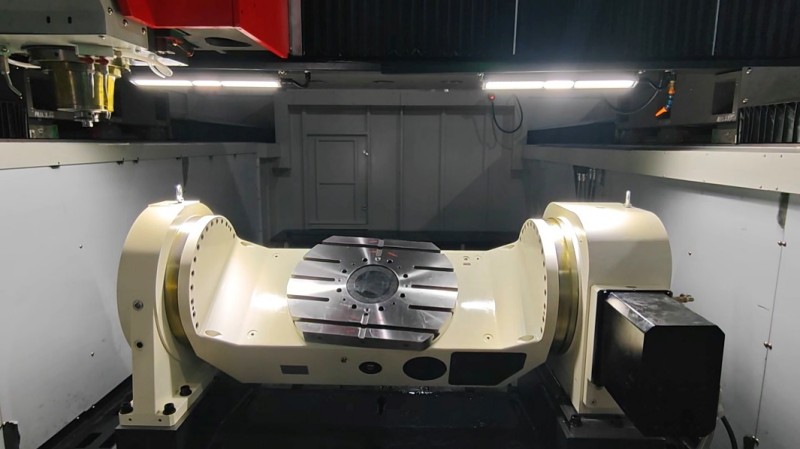

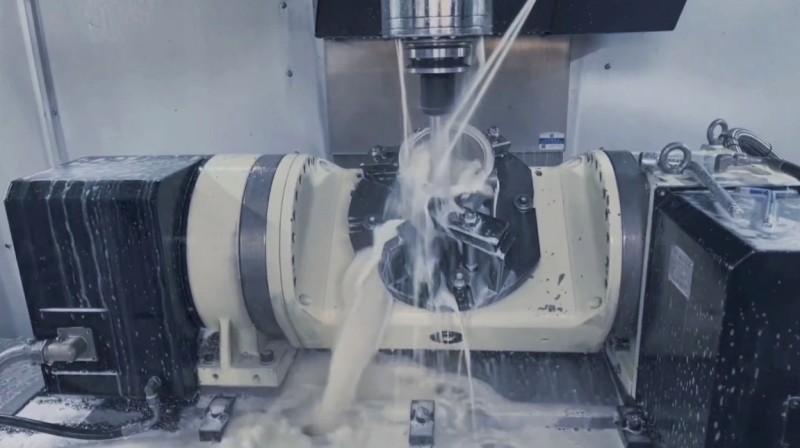

5-axis machining centers

Complex aerospace component manufacturing

High-precision mold and die machining

Medical device part production

Problems Solved:

Eliminates backlash accumulation during prolonged multi-axis cutting

Reduces cycle time through faster indexing speeds and forward/reverse capability

Maintains rigidity at extreme angles, ensuring consistent surface finish

Compatible with 3+2 positioning machining, multi-face machining, and (with suitable CNC control) full 5-axis simultaneous machining

Modular integration design facilitates adaptation to different CNC system brands and machine tool configurations

Technical Highlights:

Roller gear cam mechanism for zero-backlash transmission – longer precision life and lower maintenance costs over time

Repeatability of ±4 arc-seconds, suitable for precision machining

Optional pneumatic or hydraulic braking system ensures stable machining under heavy cutting loads

Available Specifications:

Table diameter ranging from 125 mm to 1,000 mm, covering small to large workpiece requirements

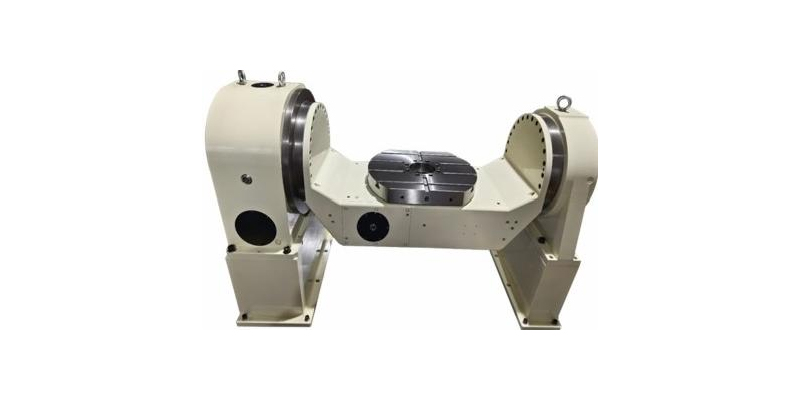

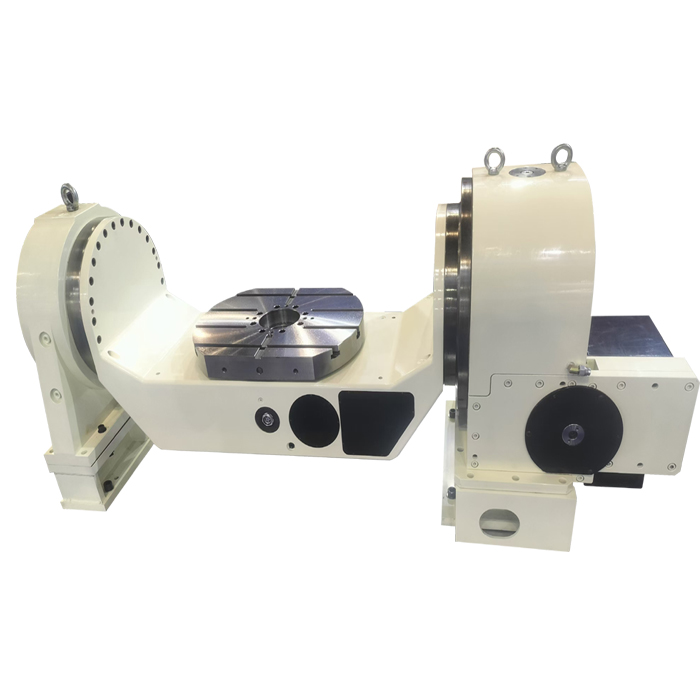

Extended-reach (gantry-style) models available for applications requiring additional Z-axis clearance or offset mounting

Custom configurations supported – including table interface, mounting arrangement, and special stroke adaptations

Technical Documentation & Selection Support: For detailed dimensions, load capacities, and interface parameters, please refer to the product manual available in our Download Center. For application-specific selection advice, please contact our application engineers.
