High-Precision Indexing Solutions for Next-Generation CNC Machining

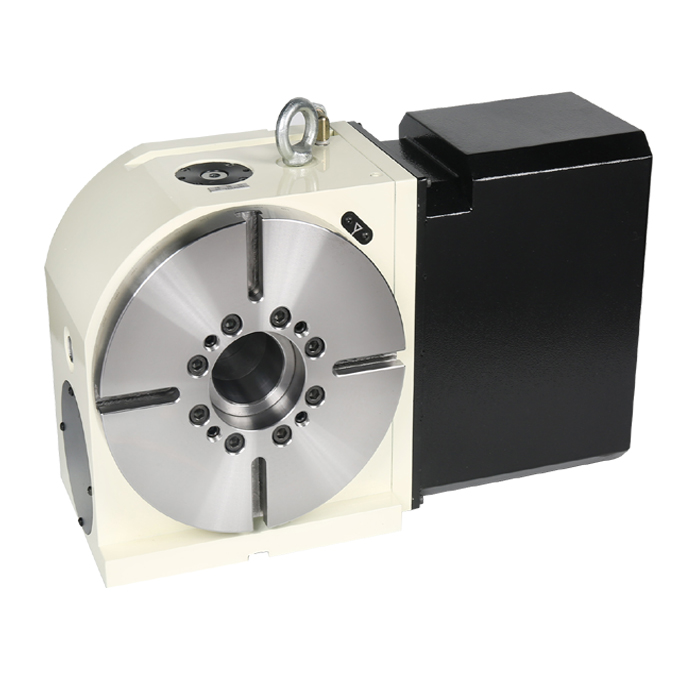

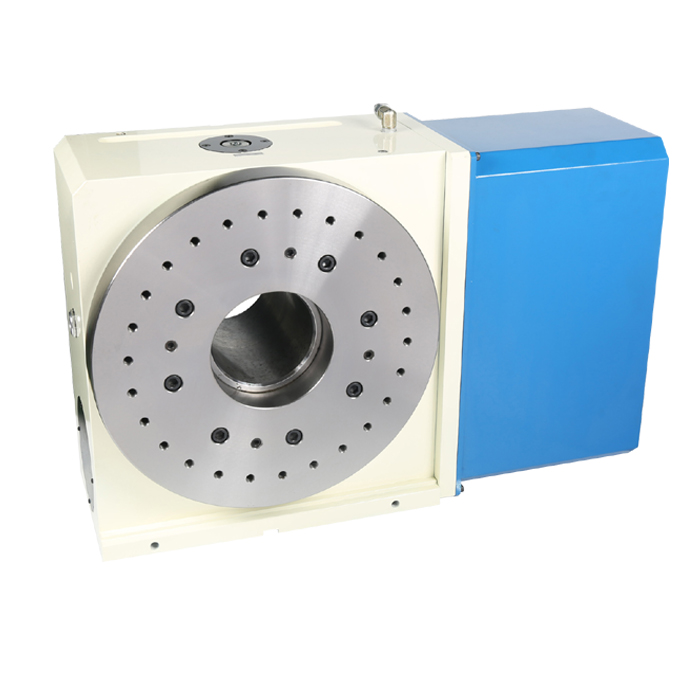

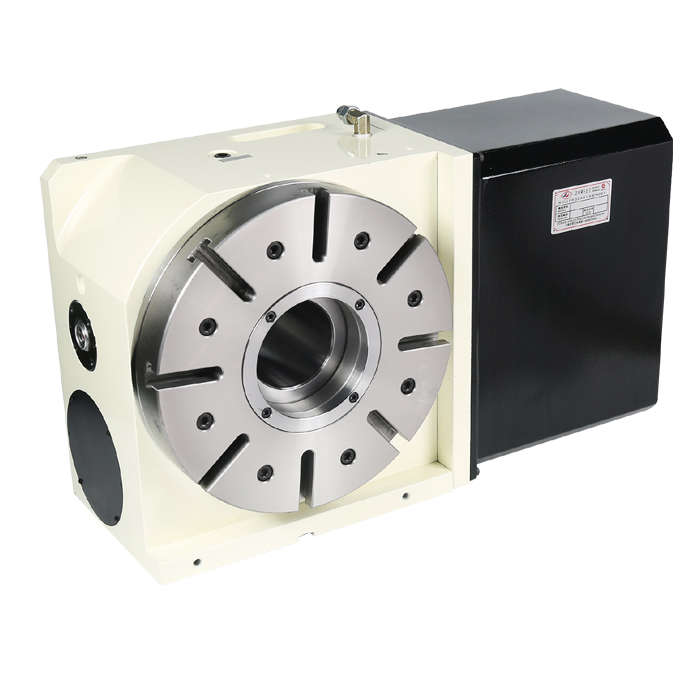

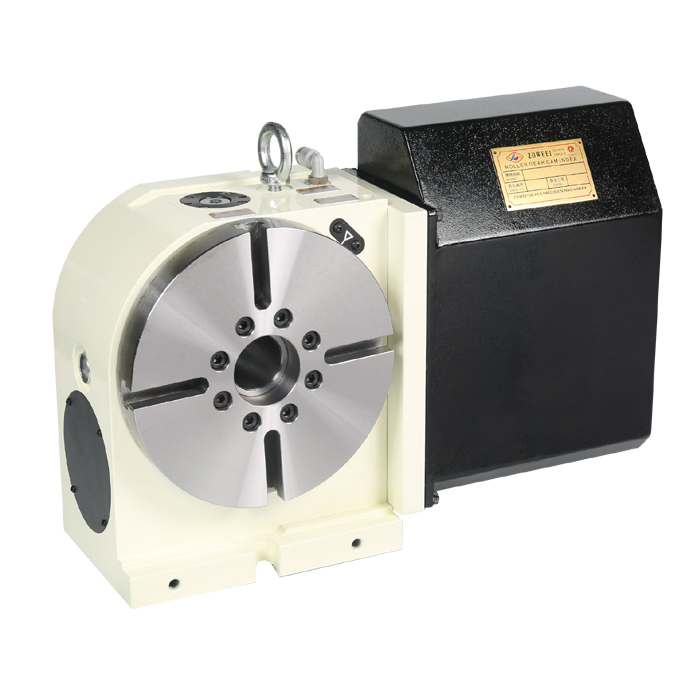

The CD Series is a high-precision rotary indexing unit engineered with a Roller CAM mechanism. Unlike traditional worm-gear systems, the CD series utilizes rolling contact for power transmission, providing a zero-backlash, high-response, and long-term stable 4th-axis solution for CNC machining centers.
Share:
Technical Excellence
1. Transmission Mechanism: Rolling Contact & Zero Backlash
The Logic: The internal structure employs a precision roller CAM to convert sliding friction into rolling motion.
The Performance: Through the pre-loaded coordination between the CAM and the rollers, mechanical backlash is physically eliminated. This ensures rapid response and superior positioning accuracy during frequent start-stop and bi-directional indexing.
2. Precision Stability: Repeatability ±4"
Key Metric: Supports a minimum setting unit of 0.001°, with indexing accuracy of 20" and repeatability within ±4".
Durability: Due to the low-wear nature of rolling transmission, the precision remains consistent even under long-term heavy-duty machining conditions, significantly reducing maintenance costs.
3. Dynamic Response: High Speed & Efficiency
Optimized Gear Ratio: For high-frequency machining (e.g., 3C industry), models such as CD-125/170/200 feature a 1:36 ratio, achieving a maximum output speed of 111 rpm to minimize non-cutting indexing time.
4. Locking Rigidity: Multi-Stage Clamping
Reliability: Equipped with high-rigidity pneumatic or hydraulic clamping mechanisms. For instance, the CD-255 model provides a clamping torque of 50 kgf.m (Pneumatic) / 110 kgf.m (Hydraulic), ensuring zero displacement during heavy-duty cutting.
Specifications & Compatibility
01
Product Range Available from table diameters Φ125mm to Φ1000mm:
CD/CT Series:
Vertical/Horizontal dual-use design, compatible with most vertical machining centers (VMC).
HCD Series:
Dedicated horizontal design with a square table, optimized for horizontal machining centers (HMC).
02
Global System Integration Standardized interface design for seamless integration with world-leading servo systems:
Fanuc / Mitsubishi / Yaskawa / Siemens / Heidenhain, and more.
03
Supporting Ecosystem Comprehensive work-holding support with matching HTS (Manual), TAT (Automatic), and FT (Pneumatic Brake) series tailstocks to ensure rigidity for complex workpiece machining.
NO.001°(Thousandth of a degree)
|
Specification/Model |
Unit |
CD-125 |
CD-170 |
CD-200 |
CD-255 |
CD-320 |
CD-400 |
CD-500 |
CD-630 |
CD-630H |
CD-800H |
CD-1000H |
|
|
Table Diameter |
mm |
φ125 |
φ170 |
φ200 |
φ255 |
φ320 |
φ400 |
φ500 |
φ630 |
630*630 |
800*800 |
1000*1000 |
|
|
Center Height (Vertical) |
mm |
110 |
135 |
160 |
160 |
210 |
255 |
310 |
360 |
卧式 |
卧式 |
卧式 |
|
|
Spindle Through Hole Diameter |
mm |
20 |
40 |
40 |
60 |
90 |
120 |
180 |
100 |
100 |
100 |
100 |
|
|
Overall Height (Horizontal) |
mm |
150.2 |
153.8 |
153.8 |
204.5 |
250 |
255 |
315 |
330 |
375 |
420 |
445 |
|
|
Table bore diameter |
mm |
φ35 |
φ40 |
φ50 |
φ80 |
φ120 |
φ140 |
φ200 |
φ150 |
φ150 |
φ150 |
φ150 |
|
|
Table T-slot |
mm |
12H7 |
12H7 |
12H7 |
12H7 |
14H7 |
14H7 |
18H7 |
18H7 |
18H7 |
22H7 |
22H7 |
|
|
Positioning guide block |
mm |
14H7 |
18H7 |
18H7 |
18H7 |
18H7 |
18H7 |
18H7 |
18H7 |
16H7 |
16H7 |
16H7 |
|
|
Max.Output Speed(4000rpm) |
rpm |
111 |
111 |
111 |
67 |
55.5 |
33 |
33 |
22 |
22 |
18.5 |
5.5 |
|
|
Reduction ratio |
|
1:36 |
1:36 |
1:36 |
1:60 |
1:72 |
1:120 |
1:120 |
1:180 |
1:180 |
1:216 |
1:720 |
|
|
Servo Motor Selection |
|
β4/β8 |
β4/β8 |
β4/β8 |
β8/β12 |
β22 |
β22 |
β22 |
β22 |
β22 |
β22 |
β22 |
|
|
Deadweight |
Vertical |
kgs |
50 |
75 |
75 |
100 |
200 |
250 |
400 |
600 |
/ |
/ |
/ |
|
Horizontal |
kgs |
80 |
150 |
150 |
250 |
450 |
500 |
800 |
1600 |
1600 |
3500 |
5000 |
|
|
Tailstock applied |
kgs |
80 |
150 |
150 |
250 |
410 |
500 |
800 |
1300 |
/ |
/ |
/ |
|
|
Repeatability |
sec |
±4 |
±4 |
±4 |
±4 |
±4 |
±4 |
±4 |
±4 |
±4 |
±4 |
±4 |
|
|
Indexing Accuracy |
sec |
40 |
20 |
20 |
20 |
20 |
20 |
20 |
20 |
20 |
20 |
20 |
|
|
Net Weight (Excl. Motor) |
kg |
38 |
50 |
58 |
140 |
180 |
300 |
450 |
700 |
750 |
1170 |
2160 |
|
|
Allowable Max. Axial Load (N) |
N |
11000 |
15000 |
17500 |
20000 |
23000 |
40000 |
55000 |
85000 |
85000 |
105000 |
192000 |
|
|
Allowable Radial Load (N·m) |
N·m |
270 |
300 |
330 |
1000 |
1200 |
2000 |
2600 |
6100 |
6100 |
7600 |
21000 |
|
|
Allowable Moment Load (N·m) |
N·m |
500 |
1000 |
1400 |
1800 |
2000 |
4000 |
7100 |
9600 |
9600 |
12800 |
23500 |
|
|
Locking system(pneumatic) |
MPa |
3-5 |
3-5 |
3-5 |
/ |
/ |
/ |
/ |
/ |
/ |
/ |
/ |
|
|
Clamping System (Pneumatic/Hydraulic) |
|
Pneumatic |
Pneumatic |
Pneumatic |
Hydraulic |
Hydraulic |
Hydraulic |
Hydraulic |
Hydraulic |
Hydraulic |
Hydraulic |
Hydraulic |
|
|
Supply Pressure |
kg/cm² |
5 |
5 |
5 |
25 |
30 |
30 |
30 |
35 |
35 |
35 |
35 |
|
|
Clamping Torque |
N·m (kgf.m) |
16 |
25 |
25 |
90 |
150 |
180 |
265 |
460 |
460 |
760 |
1100 |
|
A fourth-axis rotary table allows several faces of a component to be machined in one setup.
Typical parts include:
When combined with a chuck and tailstock, the rotary table can support:
Programmable angular positioning supports:
A fully integrated fourth axis can coordinate with the machine’s linear axes for:
Large rotary tables can carry bridge plates or custom fixtures containing several workpieces.
This can help increase machine utilization and reduce loading frequency.
The rotary table can be integrated with:
Suitable components include:
Applications include:
Compact high-speed models are suitable for:
Applications include:
Fourth-axis positioning can support:
Suitable parts include:
Whether you need a compact high-speed fourth axis for precision components or a large hydraulic rotary table for heavy industrial workpieces, Hangonghui can help match the rotary system to your machine and process.
Share your machine model, workpiece drawing and production requirements with our engineering team.
Functional Options & Accessories

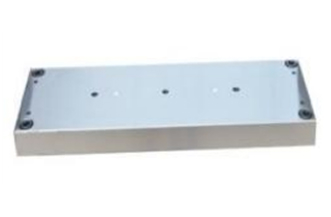

Bridge Plate(Sub-plate & Base Plate)

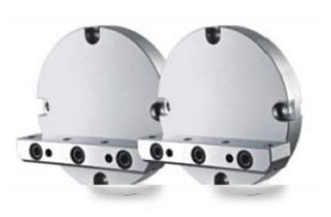

L-Block

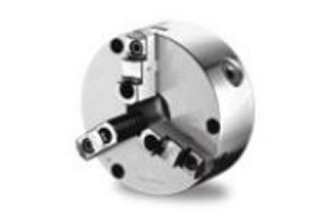

3-Jaw Chuck

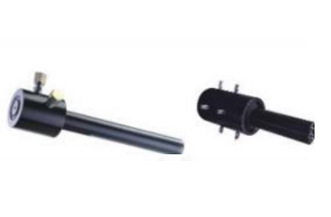

Pneumatic / Hydraulic Rotary Joint

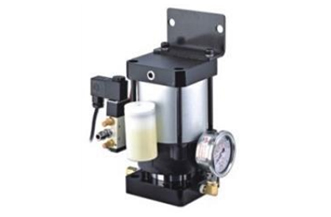

Air-0il Booster

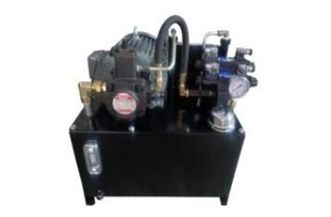

Hydraulic Unit

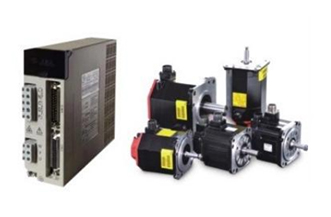

Servo Motor & Driver
